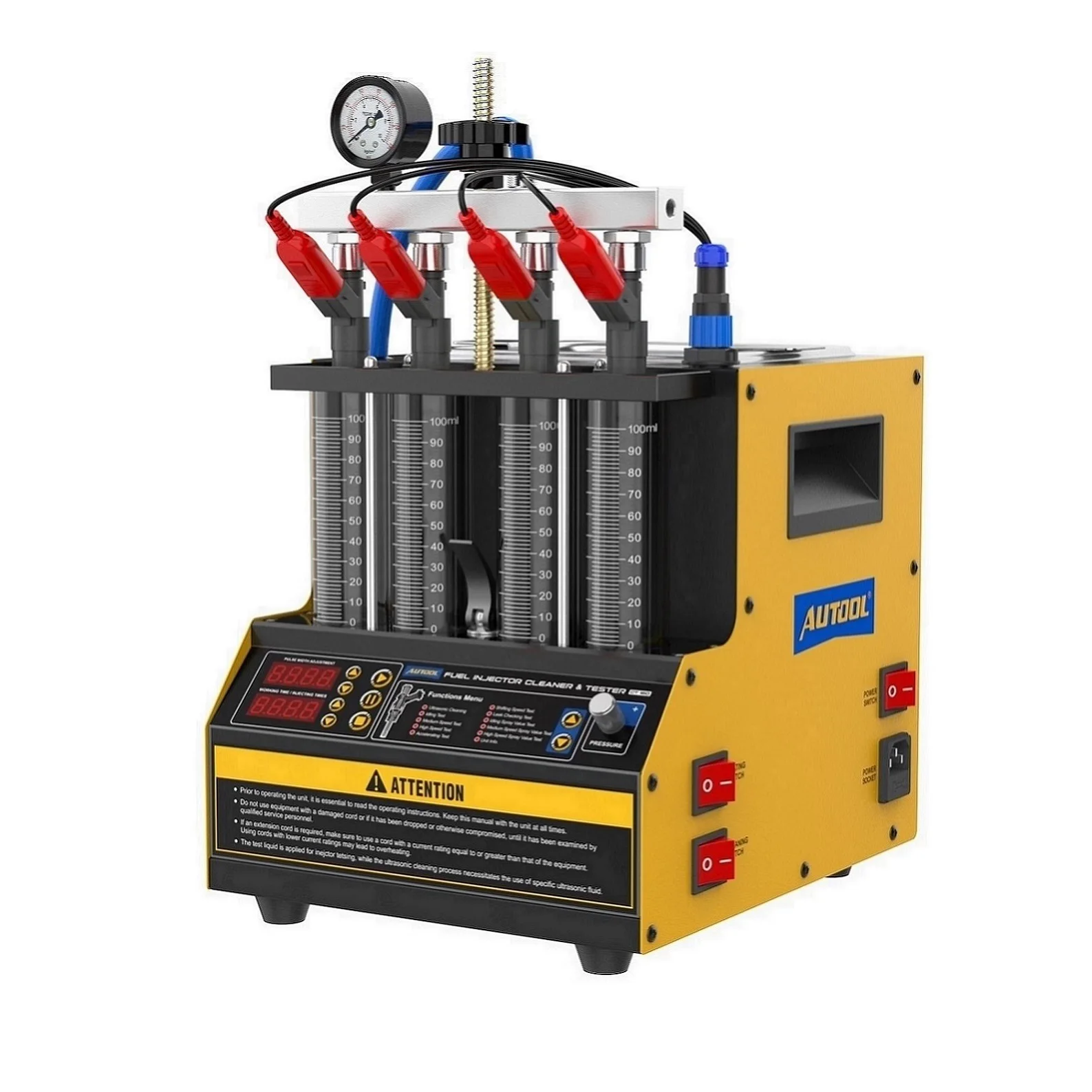

Fuel Injector Cleaner And Tester Machine Stock Photo

10 test methods Ultrasonic cleaning Wobble test Acceleration test Spray volume test at medium speed High speed test Leakage test High speed spray volume test Uniformity detection: To detect the uniformity of the injection volume of each syringe. Tightness detection: It can detect the tightness and dripping of the fuel injection nozzle under high pressure. Fuel injection volume detection: It can detect the fuel injection volume of the injector under certain working conditions (e.g. at the same time and the same number of times). COMPATIBLE WITH DIFFERENT TYPES OF INJECTORS Can clean and test normal injectors, GDI injectors, EFI injectors and FSI injectors. WIDE RANGE OF APPLICATIONS Supports most cars and motorcycles on the market for fuel injector testing SAVING AND THE ENVIRONMENT Cleaning and test fluids are recycled and reused to avoid waste. TECHNICAL PARAMETERS Tank capacity: 1300ml Rotation range: 0-7500rpm PWM pulse width: 0 ~ 20.0ms 0.1ms step Time: 0~20 minutes Cleaning frequency: 40kHz Volume of the cylinder: 180ml Package dimensions: 340 x 295 x 360mm Power supply: AC 110/220V ±10 Frequency: 50/60Hz ±0.5 Relative humidity: <85 Ambient temperature: 0℃～＋40℃ External magnetic field strength: <400A/m PAKETLISTE 1 x fuel injector diagnostic device 12 x Moto Top oil inlet plugs (10,10.6,11mm) 4 x adapter cables 1 pair x locking pin and nut 1 x Ultrasonic cleaning stand 4 x extension plugs 1x signal cable 2x oil drain valve 3 x plugs 1 x oil rail 1 x funnel After cleaning, the next step is to ensure that the syringe is sealed by mounting it on a rail and spraying liquid through an injector. It has 10 test modes: ultrasonic cleaning; idle test; medium speed test; high speed test; acceleration test; variable speed test; leakage test; idle injection test; medium speed injection test; high speed injection test. Multifunction Ultrasonic Injector Cleaning Device - 1, injector cleaning test: Injector cleaning test can be done once, can also be more than one injector at the same time. 2, uniformity test: can test the uniformity of injector test fluid in each cylinder to observe. This injector cleaner uses interchangeable composite fittings and is suitable for all types of vehicles. The injection test time, operating frequency, number of injections and minimum switching cycles can be set as required. This device is a necessary and preferred equipment in the automotive repair industry Intuitive Cleaning Process: The fuel injector cleaning kit has an intuitive design: LED display screen, pressure gauge, glass tube, liquid meter and control panel allow you to monitor the entire cleaning process in real time. The panel has an LCD touch screen that allows you to set all parameters and select the tests/operations to be performed.
